OS
Android 13
Battery
7.7V/3420mAh
Memory
Maximum RAM 4GB
Maximum Flash 64GB
CPU
Lowest Cortext-A53
Quad Core 2.0GHz CPU
Bigger Screen
6.745-inch HD+, 1600x720
Maximum Screen Size
NEW9830 is the portable POS terminal with a 6.745” big screen to deliver extraordinary visual and operation experience.
Latest Generation Performance
EW9830 is equipped with at least ARM Cortext-A53 quad-core processor with a speed of 2.0GHz. The memory starts at 2GB RAM + 8GB FLASH. It uses the latest Android 13 version.

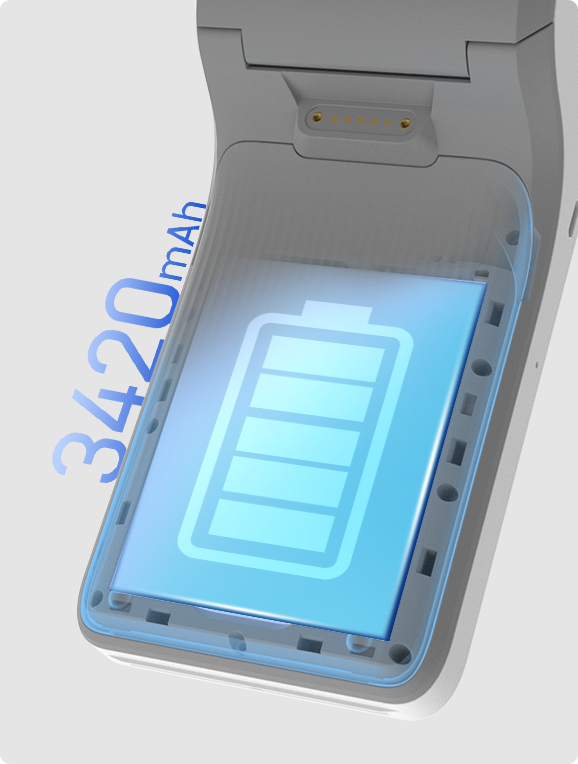

Large Capacity Battery
Upgraded to polymer battery, longer battery cycle life. The maximum capacity can be increased to 7.7V/3420mAh.

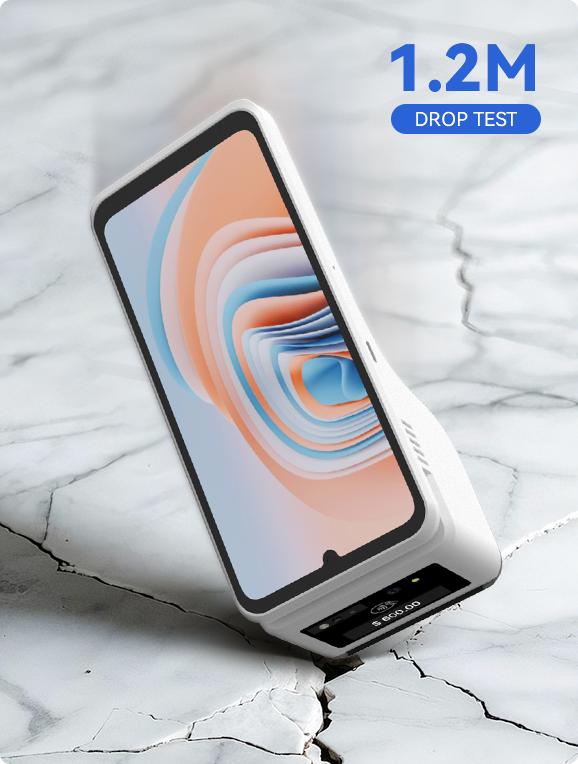

Built tough and drop-resistant
Upgraded to polymer battery, longer battery cycle life. The maximum capacity can be increased to 7.7V/3420mAh.
More Configurable Options
01 Customer Display

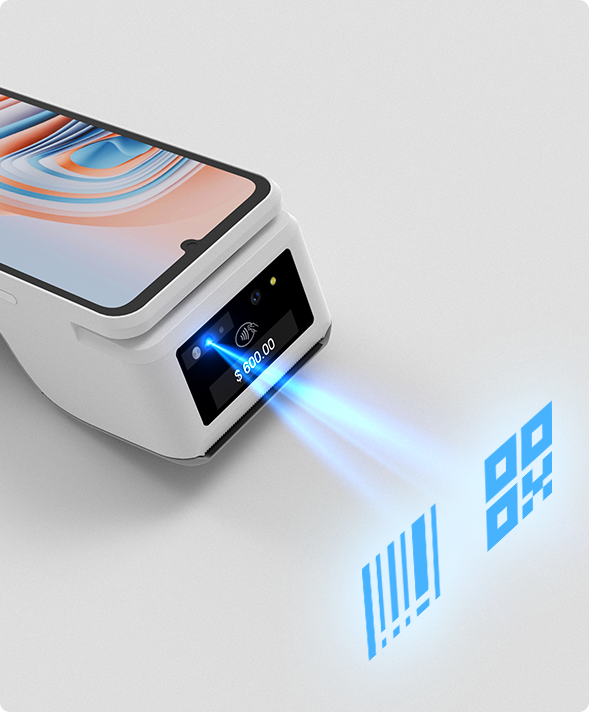

02 Scanning
03 Fiscal Module
04 Magnetic Charging
Supported Payments
1D&2D QR
IC Card
Magnetic Card
Mobile Payment
NFC
Specifications
Asmart, Powered by Android 13
Cortex A53 Quad-Core, 2.0GHz + Secure Processor
Octa-Core, 4xA53 2.0GHz, 4xA53 1.5GHz + Secure Processor
2GB RAM + 8GB Flash
2GB RAM + 32GB Flash
Extended MicroSD Card Slot Up to 256GB
Magnetic Stripe | Chip & PlN | Contactless
Removable Polymer Battery
7.6V/2500mAh/19Wh (Equal to 3.6V/5278mAh )
7.7V/3420mAh/26.3Wh (Equal to 3.6V/7315mAh )
2 Micro SIM + 2 Mini SAM + 1 Micro SD
eSIM + 1 Micro SIM + 2 Mini SAM + 1 Micro SD
1 Power ON/OFF，1 Function
1 Speaker
1 Microphone
Input: 100-240V AC, 50Hz/60Hz | Output: DC 5V/2A
Operating Temperature: 0°C~50°C (32°F~122°F)
Relative Humidity: 5%~95% (Non-Condensing)
Charging Base
Multifunction Base
Magnetic Charging
Front: 2MP Fixed Focus
Front: N/A
Top: 5MP Auto Focus, with Flashlight
Top: 2MP Fixed Focus
Top: 13MP Auto Focus, with Flashlight
Top: 1D/2D professional scanner
Main Display: 6.745" IPS HD+, 720 x 1600 Pixels
Multi-Point Capacitive Touch Screen
Customer Display: Dot-matrix LCD, 130 x 32 Pixels
2G/3G/4G
Wi-Fi (802.11a/b/g/n/ac), 2.4GHz & 5GHz
Bluetooth5.0
Speed: 80mm/sec | Paper Roll Outer Diameter: 40mm | Paper width: 58mm
GPS | GLONASS | BEIDOU | GALILEO
Fiscal Module
1 USB Type-C OTG | 5 PIN POGO PIN for Base
1 USB Type-C OTG | 4 PIN POGO PIN for Magnetic Charging
192.5 x 81 x 57mm, 430g (including 2500mAh battery)
Storage Temperature: -20°C~60°C (-4°F~140°F )
Relative Humidity: 5%~95% (Non-Condensing )
PCI PTS 6.x | EMV L1 & L2 | EMV CL1 | Visa PayWave | MasterCard PayPass | Unionpay Quickpass | American Express | Discover D-PAS | JCB J/Speedy | Anatel | ABECS | MasterCard TQM | CE | RoHS
