Smart POS Terminal
NEW9810
Versatile smart POS for various scenarios
Fast Thermal Printer
Printer Speed 80mm/s.
Long Lasting Battery
7.2V/2600mAh Option:7.2V/3350mAh
Processor
Cortext-A53 Quad Core, 2.0GHz CPU
Keypad
Durable and comfortable design
Compatible design for the visually impaired

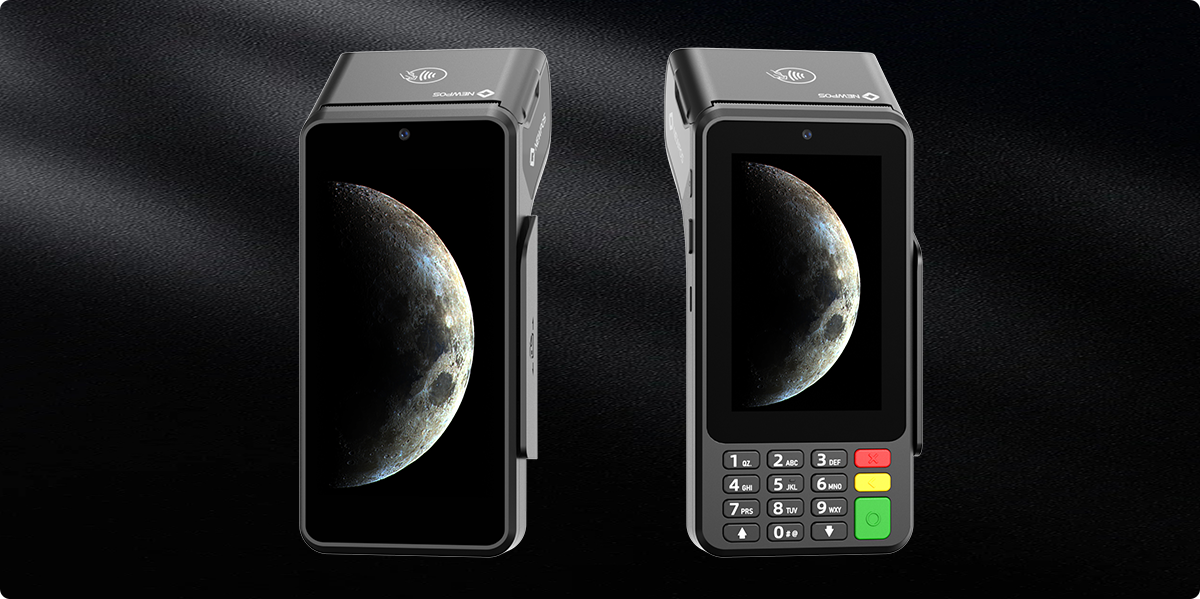

Two Display Sizes
4 inch with keyboard
5 inch Full Screen
Two Display Sizes, One Solution
The NEW9810 platform offers dual screen configuration options, providing enhanced versatility for a broader range of application scenarios
High Performance
NEW9810 is equipped with a Quad-Core 2.0GHz high-performance CPU, capable of smoothly running the Android 13 system on 1GB DDR + 8GB eMMC
Advanced Communications
The NEW9810 integrates multiple wireless communication bands, enabling secure payments anytime, anywhere.
4G/3G/2G
Wi-Fi 2.4GHz && 5.0GHz
Bluetooth 5.0

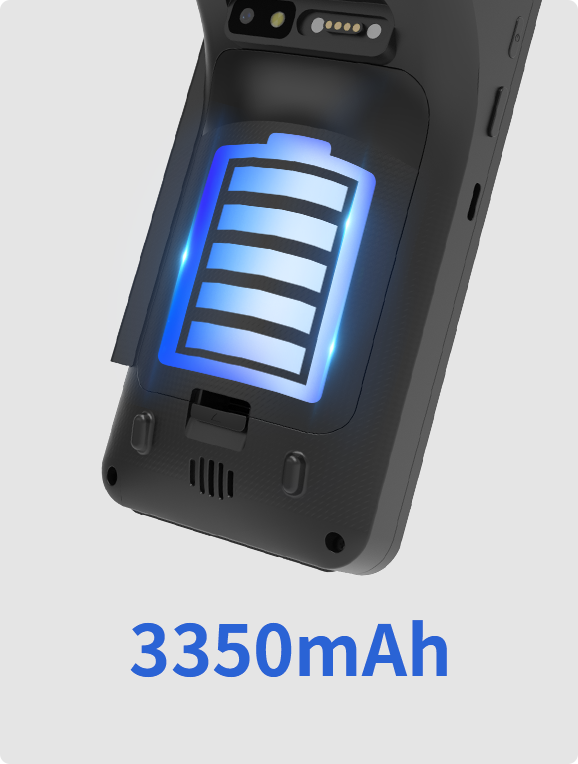

Long-lasting Battery
Equipped with a high-voltage dual- cell lithium battery, paired with a 7.2V/2600mAh capacity, the product offers extended usage time.
Optional high-capacity
configuration: 7.2V/3350mAh
More Configurable Options
01 Magnetic Stripe Card Function
02 Magnetic Charging Interface
03 Charging Cradle
04 Customized Cradle

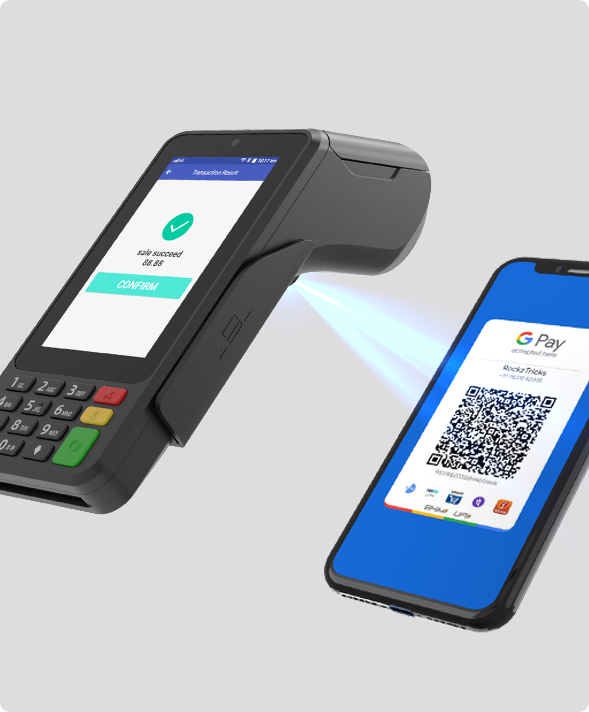

Supported Payments
QR Codes
NFC
Magnetic Card
Mobile Payment
IC Card
Specifications
Asmart, Powered by Android 13
1GB RAM + 8GB Flash
2GB RAM + 32GB Flash(Optional)
Extended microSD Card Slot Up to 128GB
Front: N/A
Front: 2MP Fixed Focus(Optional)
Rear: 0.3MP Fixed Focus
Rear: 5MP Auto Focus, with Flashlight (Optional)
7.2V/2600mAh/18.72Wh (Equal to 3.6V/5200mAh)
7.2V/3350mAh/24.12Wh (Equal to 3.6V/6700mAh)(Optional)
2 Nano SIM + 2 Micro SAM + 1 SD
eSIM + 1 Nano SIM + 2 Micro SAM + 1 SD(Optional)
1 Speaker
1 Microphone (Optional)
50Hz/60Hz | Output: 5.0V DC, 2.0A
Storage Temperature: -20°C~60°C (-4°F~140°F)
Relative Humidity: 5%~95% (Non-Condensing)
PCI PTS 6.x | EMV L1 & L2 | EMV CL1 | Visa PayWave l MasterCard PayPass | Unionpay Quickpass | American Express | Discover D-PAS | JCB J/Speedy | Anatel | ABECS | MasterCard TQM | CE | RoHS
NEW9810
17 Keys: 10 numeric keys | 5 function keys | 1 Power ON/OFF | 1 Custom Key
Adjustable Backlight(Optional)
NEW9810F
1 Power ON/OFF | 1 Custom Key
Cortex A53 Quad-Core, 2.0GHz + Secure Processor
Magnetic Stripe | Chip & PlN | Contactless
Chip & PlN | Contactless (Optional)
4G/3G/2G
Wi-Fi (802.11a/b/g/n/ac) 2.4G&5G
Bluetooth 5.0
Speed: 80mm/sec | Paper Roll Outer Diameter: 40mm | Paper width: 58mm
GPS I GLONASS I BEIDOU | GALILEO
1 USB Type-C OTG | 4 PIN POGO PIN
Operating Temperature: 0°C~50°C (32°F~122°F)
Relative Humidity: 5%~95% (Non-Condensing)
Charging Base: 1 Power Port (Type-C) (Optional)
NEW9810
4" IPS, 480 x 800 Pixels
Multi-Point Capacitive Touch Screen
NEW9810F
5" IPS FW + 480 x 854 Pixels
Multi-Point Capacitive Touch Screen
5" IPS HD + 720 x 1280 Pixels (Optional)
Multi-Point Capacitive Touch Screen
NEW9810
178 x76.8 x66.1mm, 380g (including battery)
NEW9810F
178 x76.8 x66.1mm ,390g (including battery)
