SMART POS TERMINAL

NEW9310 PRO

Leading the new fashion of payment

3D Model

Wireless communication

4G, 3G, 2G, WiFi, BT

Battery

3.8V/4000mAh

Double Camera

2MP front 5MP rear

CPU

Quad-core cortex A53

6.5''
6.5 inch HD screen

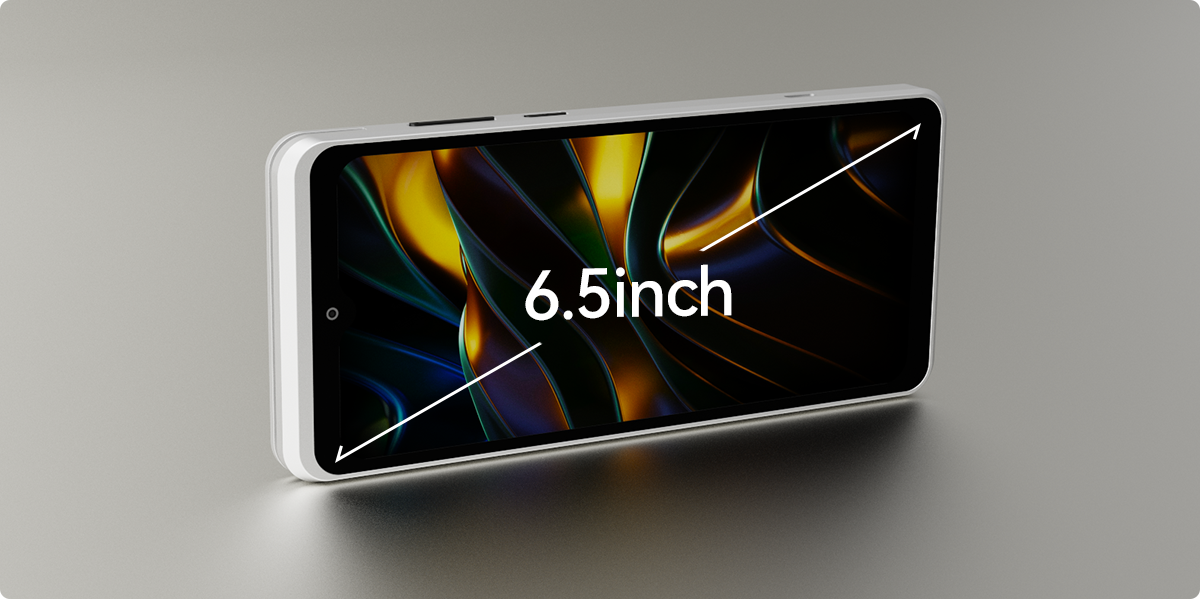

Splendid Large Screen Display

The 6.5-inch touch screen adjusts its brightness based on current lighting conditions and provides you the ultimate visual experience in any environments.

Powerful Performance, Superior Experience

A more powerful Quad-core 2.0GHz processor keeps transactions running seamlessly and faster than ever before.

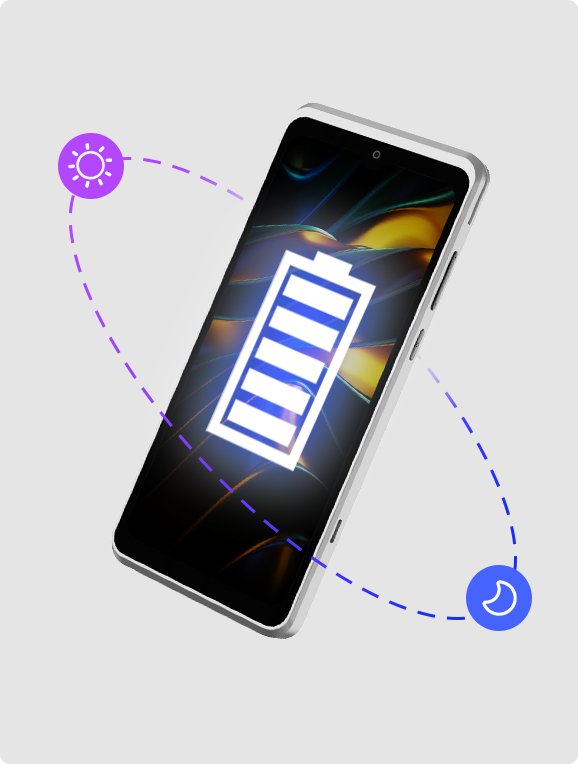

Extra large battery From morning to night, worry-free battery life

The description from morning to night comes from NEWPOS laboratory.

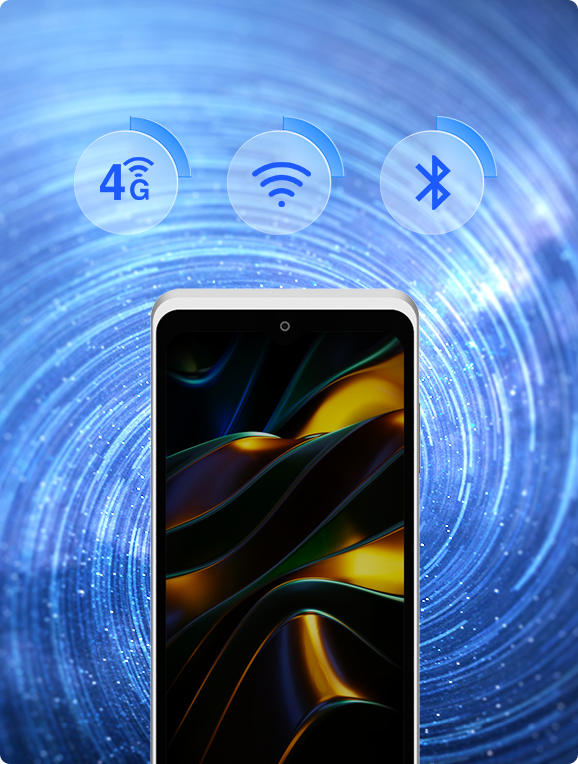

All Solutions For Full Connection

With the help of solutions for full connection, you could make payment or process data rapidly and securely on the spot through: 2G/3G/4G, Wi-Fi，Bluetooth.

NEW9310 Special Base

Step-by-step buckle
Fast loading and unloading

Dual Camera

2MP

Front

13MP

Rear

2MP Front camera and 13MP autofocus rear camera catch every detail of the codes, and makes payment more rapid and safer.

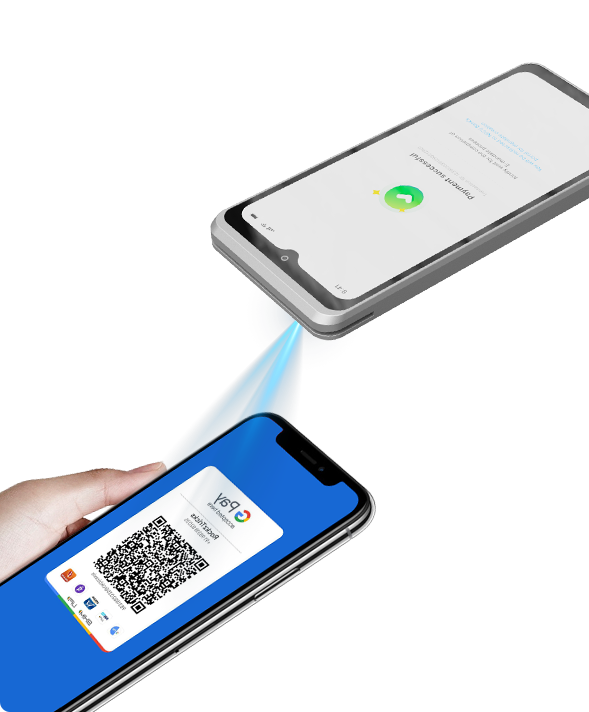

Supported Payments

It supports various payment methods, such as magnetic card, IC card, contactless transaction and code scanning transaction. A machine can be used for various forms, making collection simple.

QR Code arrow_right [#349] Created with Sketch.

Contactless Card arrow_right [#349] Created with Sketch.

NFC arrow_right [#349] Created with Sketch.

IC Card arrow_right [#349] Created with Sketch.

Magnetic Card arrow_right [#349] Created with Sketch.

QR Code

Specifications

Asmart, Powered by Android 13

Cortex A53 Quad-Core, 2.0GHz + Secure Processor

6.5" IPS HD + 720 x 1600 Pixels

Multi-Point Capacitive Touch Screen

4G/3G/2G

Wi-Fi (802.11 a/b/g/n)2.4G&5G

Bluetooth 5.0

2 Nano SIM + 1 SAM + 1 TF

2 Nano SIM + 1 TF(optional)

1 Nano SIM + 1 SAM + 1 TF(optional)

eSIM(5*6) + 1 Nano SIM + 1 SAM + 1 TF(optional)

1 Power ON/OFF | 1 Volume+ | 1 Volume-｜Secure virtual keypad for PIN entry

1 USB Type-C OTG | 5 PIN POGO PIN

173.4 x 77.5 x 16.3mm, 280g (including battery)

Storage Temperature: -20°C~60°C (-4°F~140°F)

Relative Humidity: 5%~95% (Non-Condensing)

NEW9310Pro Base Station: 1 Power Port (Type-C｜9.5V/2.5A)｜1 USB Type-A｜1 Ethernet（RJ45）｜1 RS232（RJ11｜No power supply）｜5 PIN POGO PIN

Front: 2MP Fixed Focus

Rear: 5MP Auto Focus, with Flashlight

Rear: 13MP Auto Focus, with Flashlight (Optional)

2GB RAM + 8GB Flash

2GB RAM + 16GB ROM (Optional)

Extended microSD Card Slot Up to 512GB

Magnetic Stripe | Chip & PlN | Contactless

3.85V/4000mAh/15.4Wh

GPS | GLONASS | BEIDOU

1 Speaker

1 Microphone (Optional)

Input: 100-240V AC, 50Hz/60Hz | Output: DC 5V/1A

Operating Temperature: 0°C~50°C (32°F~122°F)

Relative Humidity: 10%~95% (Non-Condensing)

PCI PTS 6.x | EMV L1 & L2 | EMV CL1 | Visa PayWave l MasterCard PayPass | UnionPay QuickPass | American Express | Discover D-PAS | JCB J/Speedy | MasterCard TQM | CE | ROHS | Felica｜VCCI-b｜JATE｜MIC（TELEC）｜GMS | IP3X
