Large Screen Design, Inspiring the Future.

NEW9310

Smart POS Terminal

3D Model

Wireless communication

4G, 3G, 2G, WiFi, BT

Battery

3.8V/4000mAh

Double Camera

2MP front 5MP rear

CPU

Quad-core cortex A53

6.5''
6.5 inch HD screen

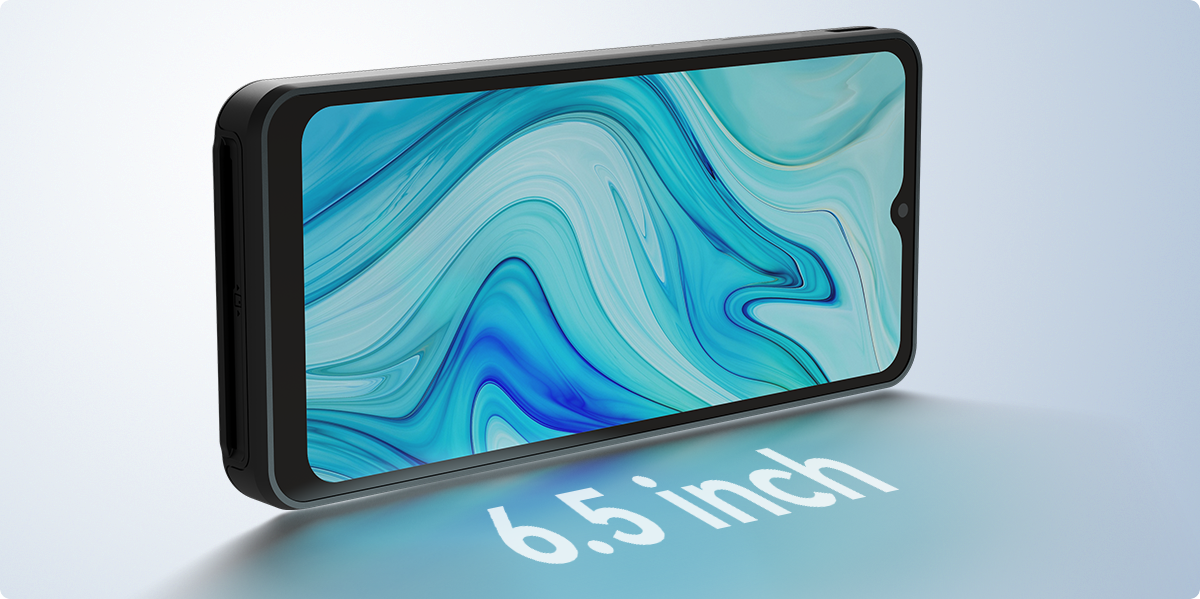

Splendid Large Screen Display

The 6.5-inch touch screen adjusts its brightness based on current lighting conditions and provides you the ultimate visual experience in any environments.

Powerful Performance, Superior Experience

A more powerful Quad-core 1.4G processor makes transactions to run seamless and faster than ever.

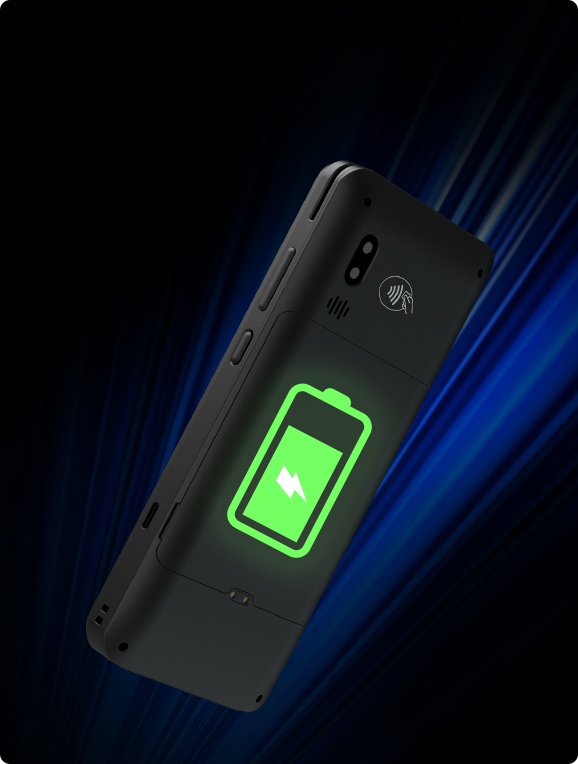

Long Battery Life

The rechargeable 3000mAh/3.8V battery ensures the NEW9310 keeps transacting smoothly a full day with a single charge.

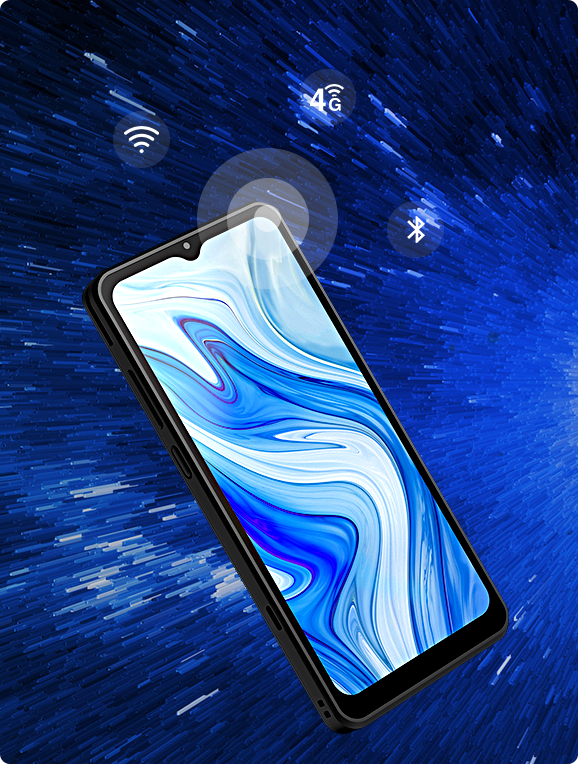

All Solutions For Full Connection

With the help of solutions for full connection, you could make payment or process data rapidly and securely on the spot through: 2G/3G/4G, Wi-Fi，Bluetooth.

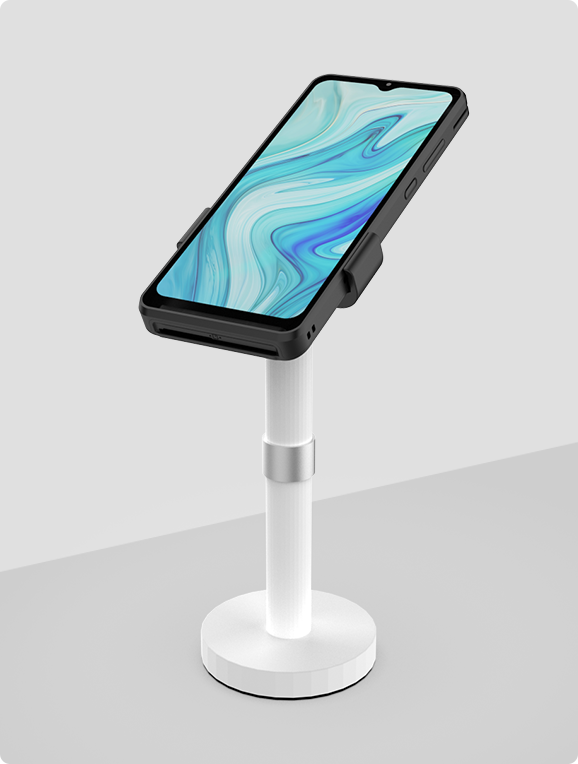

NEW9310 Special Base

Step-by-step buckle
Fast loading and unloading

Dual Camera

2MP

Front

5MP

Rear

2MP Front camera and 5MP autofocus rear camera catch every detail of the codes, and makes payment more rapid and safer.

Supported Payments

It supports various payment methods, such as magnetic card, IC card, contactless transaction and code scanning transaction. A machine can be used for various forms, making collection simple.

QR Code arrow_right [#349] Created with Sketch.

Contactless Card arrow_right [#349] Created with Sketch.

NFC arrow_right [#349] Created with Sketch.

IC Card arrow_right [#349] Created with Sketch.

Magnetic Card arrow_right [#349] Created with Sketch.

QR Code

Specifications

Asmart, Powered by Android 10

Cortex A53 Quad-Core, 1.4GHz + Secure Processor

6.5" IPS HD+ 1600 x 720 Pixels

6.5" IPS HD+ 1280 x 576 Pixels(Optional)

2G/3G/4G

Wi-Fi (802.11a/b/g/n/ac), 2.4GHz & 5GHz

Bluetooth4.2

2 Mini SIM + 1 Mini SAM

2 Mini SIM + 2 Mini SAM（optional）

1 Power ON/OFF | 1 Volume+ | 1 Volume-

1 USB Type-C OTG | 2 PIN POGO PIN

167.5 x 76.5 x 16.8mm, 255g (including battery)

Storage Temperature: -20°C~60°C (-4°F~140°F )

Relative Humidity: 5%~95% (Non-Condensing)

Front: 2MP Fixed Focus

Rear: 5MP Auto Focus, with Flashlight

1GB RAM + 8GB Flash

2GB RAM+16GB Flash (optional)

Magnetic Stripe | Chip & PlN | Contactless

3.8V/3000mAh/11.4Wh

GPS | GLONASS | BEIDOU

1 Speaker

Input: 100-240V AC, 50Hz/60Hz | Output: DC 5V/1A

Operating Temperature: 0°C~50°C (32°F~122°F)

Relative Humidity: 10%~95% (Non-Condensing)

PCI PTS 6.x | EMV L1 & L2 | EMV CL1 | Visa PayWave l MasterCard PayPass | Unionpay Quickpass | American Express | Discover D-PAS | JCB J/Speedy | Rupay | ABECS | MasterCard TQM | CE | TQM | CBI NSICC | CPACE
