58mm
A thermal printer
Battery
7.2V/2600mAh
7.2V/2600mAh
Double Camera
0.3MP Front & 5MP rear camera
0.3MP Front & 5MP rear camera
CPU
Quad-core Cortex A53
Quad-core Cortex A53
5.5"
HD Touchscreen. 720 x 1280

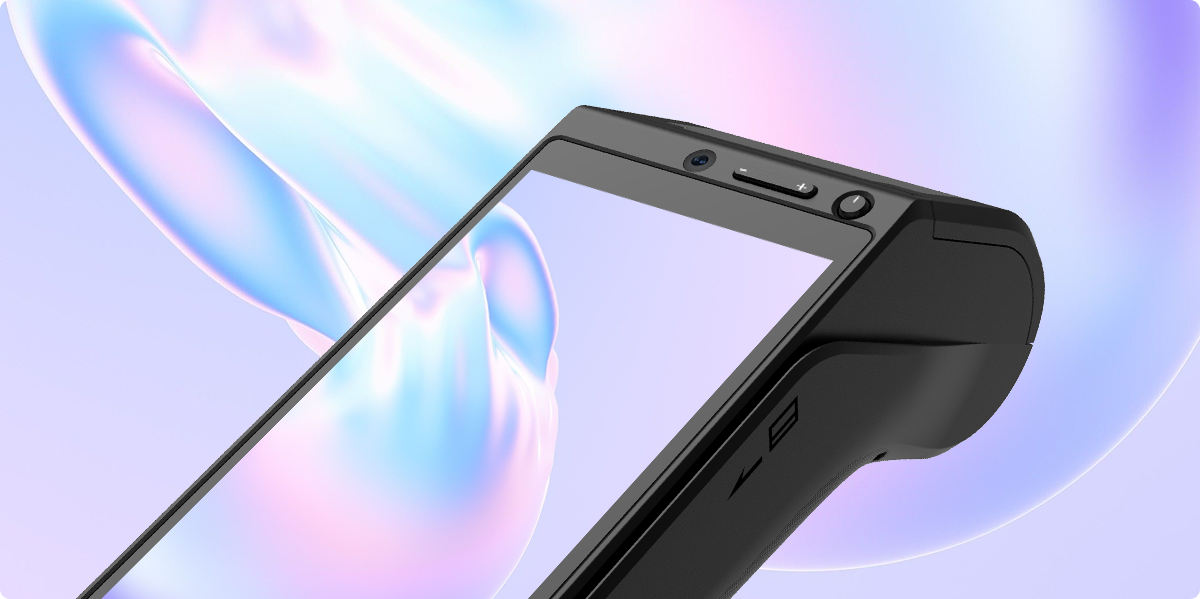

Splendid Large Screen Display
The 5.5-inch touch screen adjusts its brightness based on current lighting conditions and provides you vivid images and fascinating interaction experience.
Powerful Performance, Superior Experience
The advanced quad-core 1.6G processor has strong performance and provides hardware assurance for a convenient and fast payment experience

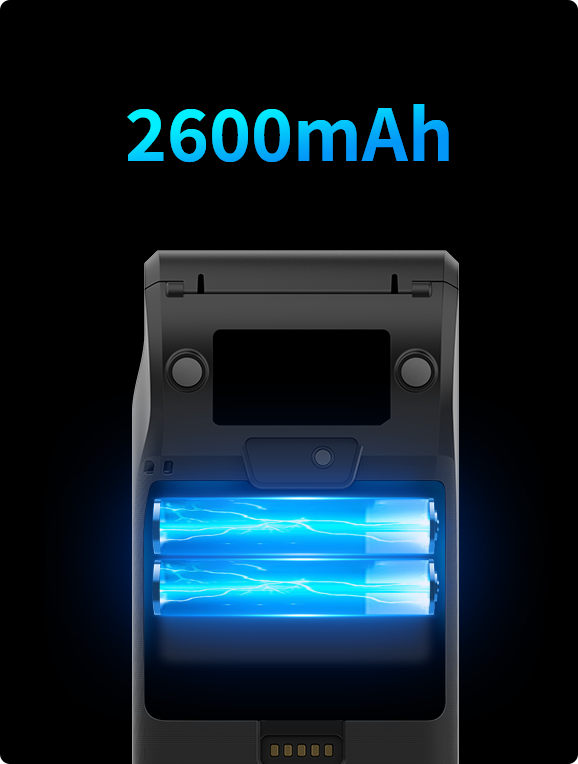

Long Battery Life
Outstanding 7.2V/2600mAh battery capacity can support a full day's use with a single charge.

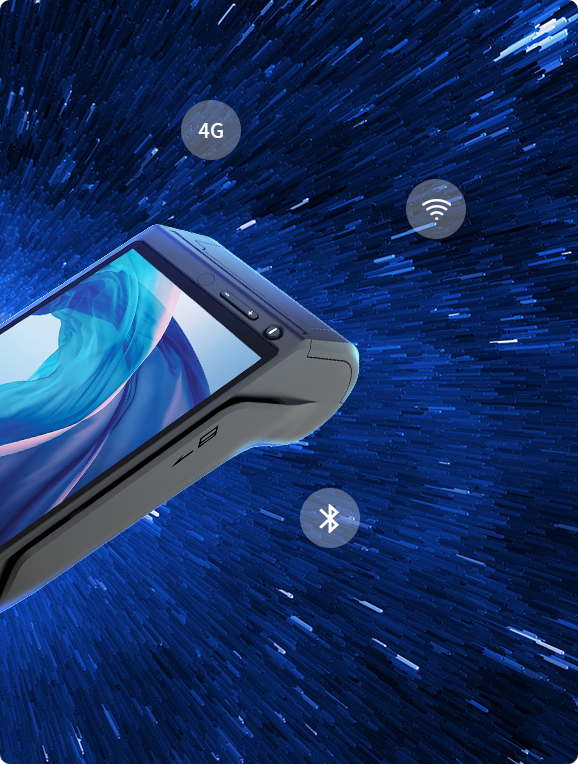

All Solutions For Full Connection
With the help of solutions for full connection, you could make payment
or process data rapidly and securely on the spot through: 2G/3G/4G,
Wi-Fi，Bluetooth.

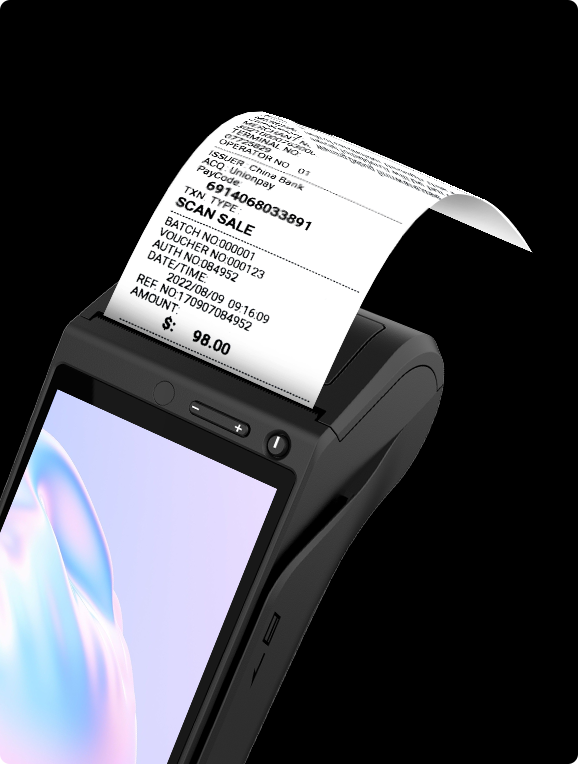

High-Speed and Portable Printer
The NEW9220 has a built-in high-speed thermal printer, which can easily and quickly print receipts anytime, anywhere.
Dual Camera
0.3MP
Front
5MP
Rear
0.3MP Front camera and 5MP autofocus rear camera catch every detail of the codes, and makes payment more rapid and safer.

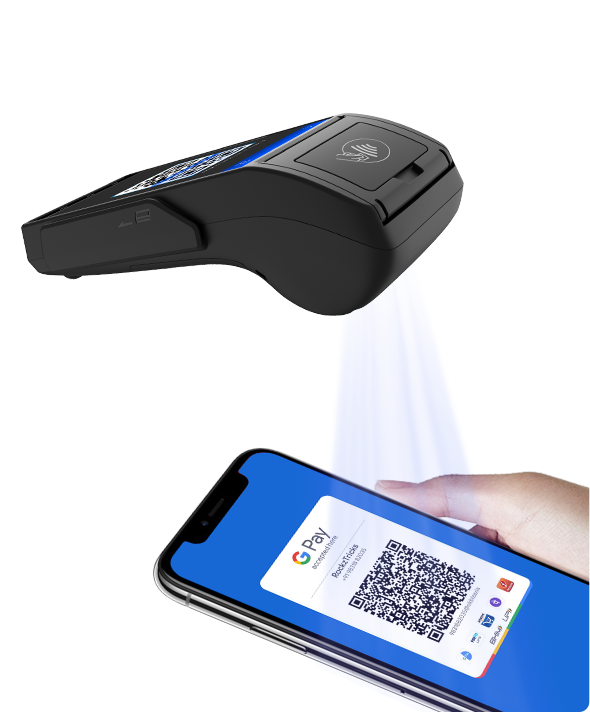

Supported Payments
QR Code
Contactless Card
NFC
IC Card
Magnetic Card
Specifications
Asmart, Powered by Android 12
Octa-Core, 2 x Cortex A75 1.6Ghz, 6 x Cortex A55 1.6 GHz + Secure Processor
5.5" IPS HD 720 x 1280 Pixels
Multi-Point Capacitive Touch Screen
2G/3G/4G
Wi-Fi (802.11a/b/g/n/ac), 2.4GHz & 5GHz
Bluetooth5.0(BR/EDR+BLE)
2 Mini SIM + 1 Mini SAM
2 Mini SIM + 2 Mini SAM（Optional）
2 Mini SIM + 1 Mini SAM + 1 Micro SD（Optional）
eSIM + 1 Mini SIM + 1 Mini SAM + 1 Micro SD（Optional）
1 Power ON/OFF | 1 Volume+ | 1 Volume-
1 USB Type-C OTG | 5 PIN POGO PIN
192 x 84 x 63.5mm, 486g (including battery)
Storage Temperature: -20°C~60°C (-4°F~140°F )
Relative Humidity: 5%~95% (Non-Condensing)
NEW9310Pro Base Station: 1 Power Port (Type-C｜9.5V/2.5A)｜1 USB Type-A｜1 Ethernet（RJ45）｜1 RS232（RJ11｜No power supply）｜5 PIN POGO PIN
Fast recognized fingerprint reader （Optional）
Front: 0.3MP Fixed Focus
Front: 2MP Fixed Focus（optional）
Rear: 5MP Auto Focus, with Flashlight
2GB RAM + 8GB Flash
2GB RAM + 32GB Flash
Extended MicroSD Card Slot Up to 256GB
Magnetic Stripe | Chip & PlN | Contactless
7.2V/2600mAh/18.7Wh (Equal to 3.6V/5200mAh )
7.2V/3350mAh/24.1Wh (Equal to 3.6V/6700mAh)（optional）
GPS | GLONASS | BEIDOU | GALILEO
1 Speaker
1 Microphone (optional)
Input: 100-240V AC, 50Hz/60Hz
Output: DC 5V/2A
Operating Temperature: 0°C~50°C (32°F~122°F)
Relative Humidity: 5%~95% (Non-Condensing)
PCI PTS 6.x | EMV L1 & L2 | EMV CL1 | Visa PayWave l MasterCard PayPass | Unionpay Quickpass | American Express | Discover D-PA｜ JCB J/Speedy | CE |
High Speed Printer | Paper Roll Outer Diameter: 40mm | Paper width: 58mm
