SMART POS TERMINAL

NEW9010

Advanced leadership, a combination of the most modern and classic.

3D Model

Printing Fast

Printer speed: 90mm/s.
With a metal paper cutter

Large Capacity Battery

7.2V/3200mAh

Physical PIN Input Keypad
P+R Material

High Performance

2.0GHz Faster CPU Cortext-A53 Quad Core

Bigger Screen

5.0 Inches IPS HD 720x1080

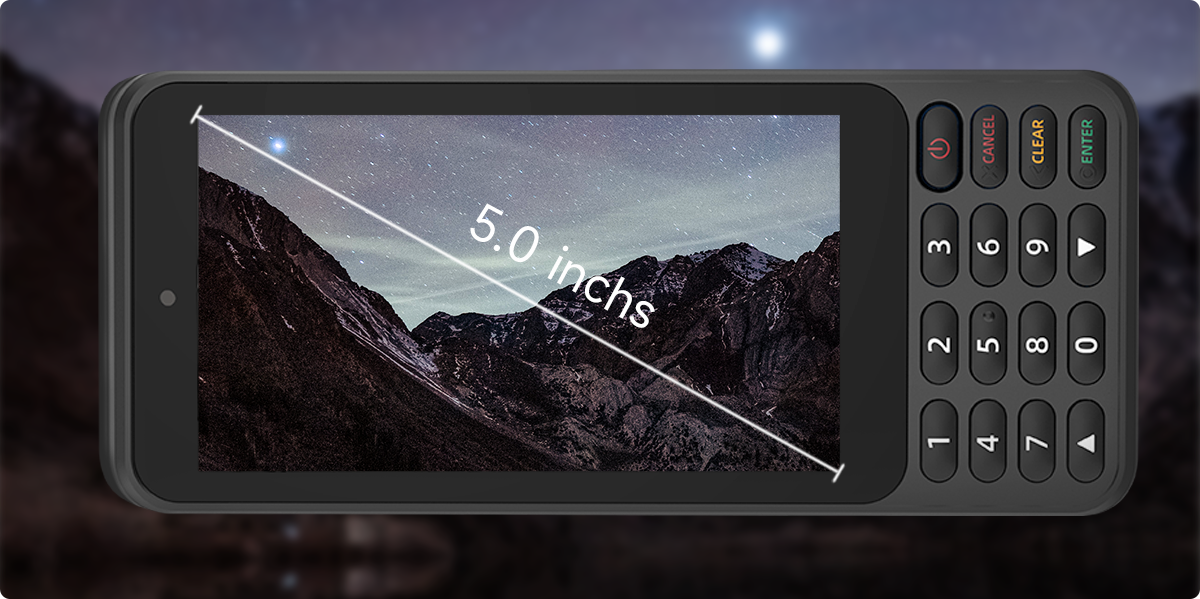

Bigger Screen

NEW9010 is the portable POS terminal with a 5.0” big screen to deliver extraordinary visual and operation experience.

High Performance

NEW9010 is based on the ARM Cortext-A53 Quad Core, a processor with the speed of 2.0GHz. NEW9010 is very premium on its performance.

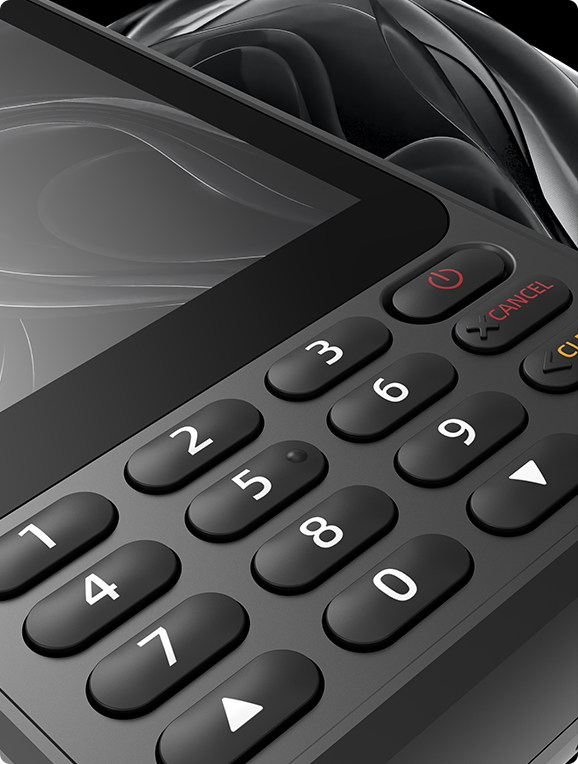

Physical PIN Input Keypad

Entering amounts and passwords is more convenient and efficient.

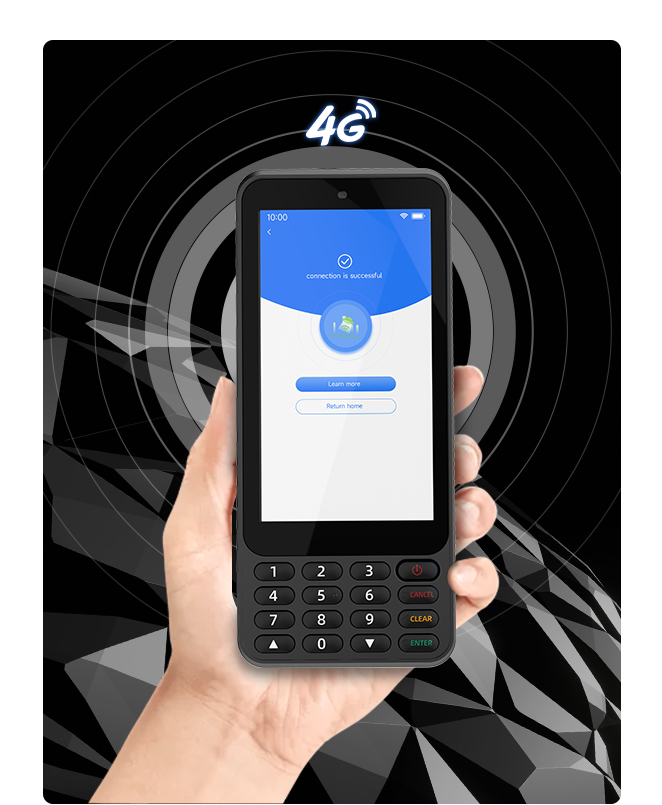

Use NEW9010 Anywhere

NEW9010 adopts Qualcomm chipsets and powerful communication module, to ensure fast and stable communication and strong network adaptability.

Printer Speed Greater Than 90mm/s

Equipped with a metal paper cutter, with long service life and smooth paper tearing.

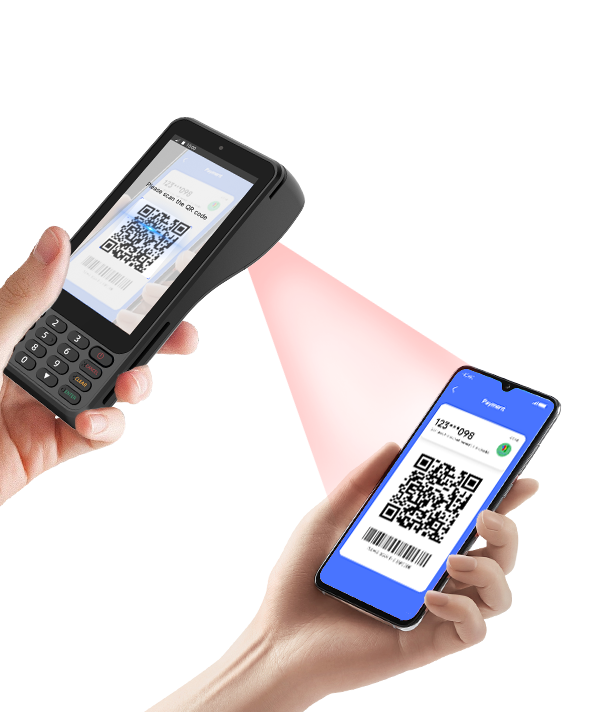

Supported Payments

NEW9010 accepts payments of magnetic stripe cards, IC cards, contactless/NFC and 1D&2D codes.

QR Code arrow_right [#349] Created with Sketch.

Contactless Card arrow_right [#349] Created with Sketch.

NFC arrow_right [#349] Created with Sketch.

IC Card arrow_right [#349] Created with Sketch.

Magnetic Card arrow_right [#349] Created with Sketch.

QR Code

Specifications

Asmart

AP: Cortex Quad-core A53,2.0GHz

SP: CSO security core,60MHz

5" HD, IPS, 1280*720, with adjustable

backlight,Capacitive multi-touch screen,

support electronic signature

4G/3G/2G

Wi-Fi 2.4G&5G

Bluetooth 5.0

GPS , GLONASS , BEIDOU

1 x Type C OTG USB

190mm x80mmx 57.4mm 450g(including battery)

Storage Temperature: -20°C~60°C (-4°F~140°F )

Relative Humidity: 5%~95% (Non-Condensing)

High-speed thermal printer,

Print Speed: 90mm/s

Paper Roll: 58*40mm

Metal paper cutter

Numeric x 10

Function x 5

Power x 1

Magnetic Charging (optional)

Functional Base (optional)

Front camera, 2MP,FF

Rear camera,5MP,AF, support 1D/2D

2GB RAM + 8GB ROM

2GB RAM +16GB ROM (optional)

Chip & PIN

Contactless

Magnetic Stripe

2xSIM +2xSAM

1 x eSIM (optional)

Speaker x 1, 10cm>90dB

Input: 100-240V AC, 50Hz/60Hz

Output: DC 5V/2A

Operating temperature: 0℃C-50℃

Storage temperature: -20°C~60°C

Relative humidity: 5%~ 95%

(Non-condensing)

PCIPTS 6.x, EMV L1&L2, EMV CL L1, Certificatlons QUICS, TQM, PayWave, PayPass, American Express,Discover D-PAS, JCB, Anatel, ABECS, ATEX, CE.

Fast recognized fingerprint reader （Optional）

Battery: 7.2V/2600mAh,

7.2V/3200mAh (optional),

Adapter: 5V/2A
