Smart Unattended Terminal
NEW 5320
New-generation unattended experience.Powerful, secure and durable, designed for a wide variety of self-service use cases.
Memory
3GB RAM+32GB Flash
IP65
IK08
High Performance
Cortext-A53 Quad Core，2.0GHz
OS
Android 13
Dual Cameras
Excellent performance
Fast transaction processing and optimized machine management through
its new generation Quadcore Cortex chipset and Android 13 operating system.
Multiple connection options
Equipped with multiple interfaces for easy system integration, external display management as well as full wireless connectivity
Superior reliability in the toughest environments
Operates flawlessly in harsh conditions, supporting temperature ranges of -20℃ to +70℃, with IP65 environmental and IK08 or IK09 impact protection.

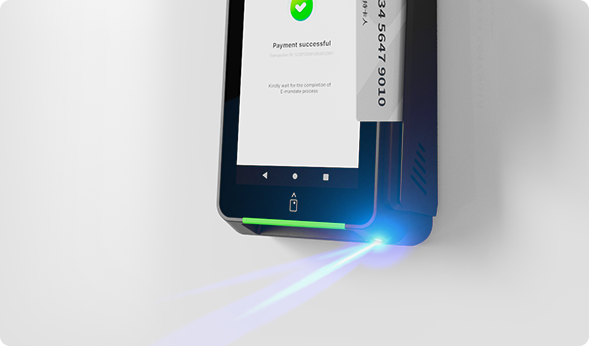

Adaptive brightness for all
conditions
Using built-in sensors to automatically detect changes in light
and the presence of users, it provides automatic brightness
adjustment for optimal energy efficiency.

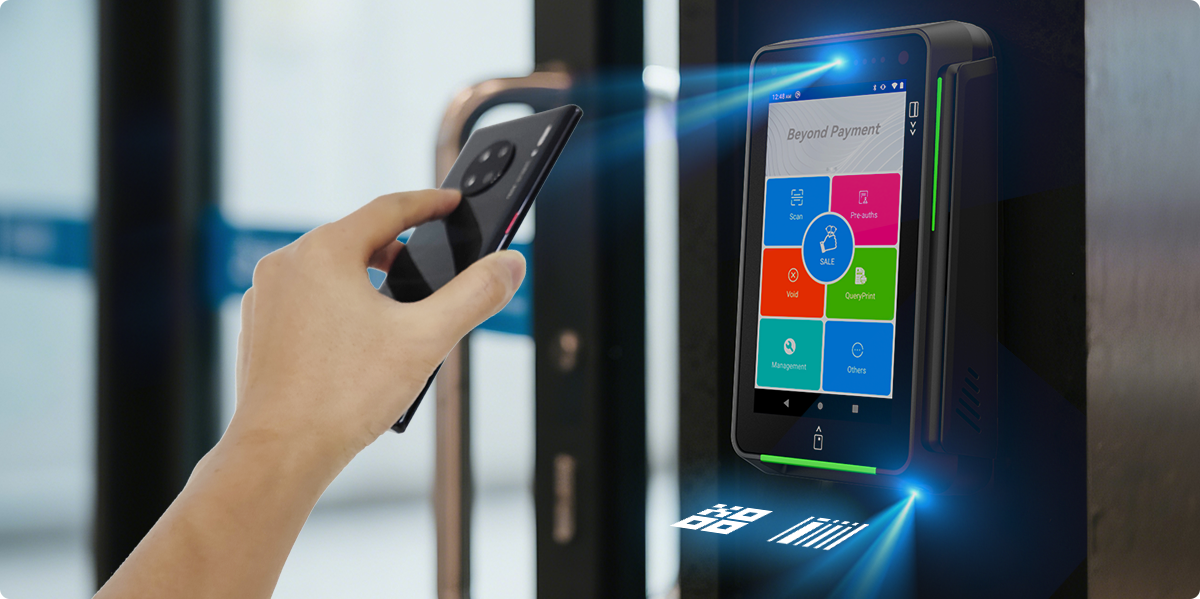

Supporting All Payments
QR Code
NFC & IC Card
Magnetic Card
Specifications
Asmart, Powered by Android 13
2GB RAM + 8GB Flash
2GB RAM + 32GB Flash
Extended MicroSD Card Slot Up to 256GB
Front: 2MP Fixed Focus
Bottom: 2MP Fixed Focus, with Flashlight
2G/3G/4G
Wi-Fi (802.11a/b/g/n/ac), 2.4GHz & 5GHz
Bluetooth5.0
Ethernet 10/100M
GPS | GLONASS | BEIDOU
1 Speaker
1 USB Type-C OTG | 1 USB Type-A Host | 1 LAN | 1 RS232 | 1 MDB Master (or MDB Slave, or JVMA) | 1 SMA 4G Antenna（optional）
"158 x 100 x 32mm, Cutout: 87 x 81mm 520g"
IP65
Operating Temperature: -20℃~70℃ (-4℉~158℉)
Relative Humidity: 5%~90% (Non-Condensing)
- PCI PTS 6.x | EMV L1 & L2 | EMV CL1 | Visa PayWave | MasterCard PayPass | Unionpay Quickpass | American Express | Discover D-PAS | JCB J/Speedy | Felica | TELEC | JATE | PSE | VCCI | MasterCard TQM | CE | FCC | ATEX | RoHS
Cortex A53 Quad-Core, 2.0GHz + Secure Processor
Magnetic Stripe | Chip & PlN | Contactless
5" IPS HD, 720 x 1280 Pixels
Multi-Point Capacitive Touch Screen
1 Mini SIM + 2 Mini SAM + 1 Micro SD
2 Mini SIM + 1 Mini SAM + 1 Micro SD
1 Reset，1 Settings
Infrared sensor, the distance of reaction is about 20CM~50CM
Input: 100-240V AC, 50Hz/60Hz | Output: DC 12V/2A
Flammability Rating
IK08 or IK09
Storage Temperature: -30℃~70℃(-22℉~158℉)
Relative Humidity: 5%~95% (Non-Condensing )
